Cara Ovpn Server Mikrotik
Dec 29, 2016 - Having OpenVPN server on your router is a nifty feature. However, as often with Mirotik, not all is straight forward. This guide is going to assume.
This article does not discuss why you should use VPN, or specifically OpenVPN – just how to implement OpenVPN server on Mikrotik RouterOS.Change these to fit your setup:. This router’s local address: 10.0.0.1. Local certificate authority name: myCa. Name for the VPN server in the certificate: server. Name for the VPN client in the certificate: client1.
Passphrase for the client’s key file: mysecret. Name of the IP address pool to give to the VPN clients: ovpn-pool. IP addresses to give to the VPN clients: 10.0.0.80-10.0.0.85. Port number: 1194. You’re free to change this to something else.
Mikrotik Vpn Server

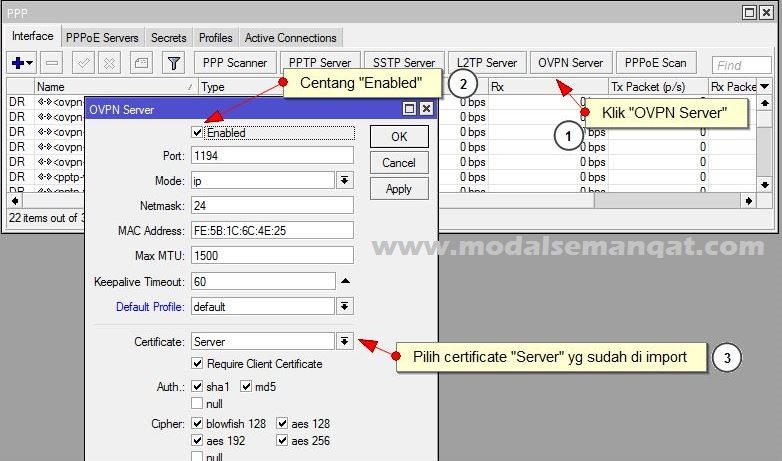

OpenVPN username: vpnuser. OpenVPN password: mypasswordAdd a certificate authority in RouterOS: /certificateadd name=myCa common-name=myCa key-usage=key-cert-sign,crl-signsign myCa ca-crl-host=10.0.0.1 name=myCaExport the certificate authority: /certificate export-certificate myCaWe now have the certificate authority file in /file print. We can copy it out via many methods: SFTP, Winbox, FTP and others.Generate certificates for both server and client: /certificateadd name=server common-name=serveradd name=client1 common-name=client1sign server ca=myCa name=serversign client1 ca=myCa name=client1Export the certificate for the client (no need to export the server’s certificate): /certificate export-certificate export-passphrase=mysecret client1We can then transfer both the.key and.crt files out by many methods. Next, create a pool, PPP profile, and login credentials: /ip pool add name=ovpn-pool range=10.0.0.80-10.0.0.85/ppp profile add name=ovpn local-address=10.0.0.1 remote-address=ovpn-pool dns-server=10.0.0.1/ppp secret add name=vpnuser password=mypassword profile=ovpnEnable the OpenVPN server, select the server’s certificate, and use this new PPP profile: /interface ovpn-server server set enabled=yes certificate=server auth=sha1 cipher=aes128 port=1194 netmask=24 require-client-certificate=yes mode=ipThe following is a sample configuration file for the client. Before using it, replace the following:.
Public address and port number (default is 1194) in the line remote. Use the correct cipher.
Cara Ovpn Server Mikrotik Ip
This configuration uses SHA1 with AES 128 bits. Domain name in the line dhcp-option DOMAIN. You can put a fictional one if you don’t have one. DNS server in the line dhcp-option DNS. Route to the local network at the VPN side in the line route. Content from the export of the certificate authority in the section.
Content of the client’s certificate file in the section. Content of the client’s key file in the section. Custom content hair for sims 4.
I have some issues with making MT to work with OpenVPN server (Debian). I can make successfull connection to OVPN server, but traffic is not routed through OVPN server. Your client is not routing through OVPN tunnel because there is no route(default gateway) on mikrotik!So add another gateway on mikrotik with a routing mark with destination of OVPN server 10.8.0.1 /ip route add dst-address=0.0.0.0/0 gateway=10.8.0.1 routing-mark=clientmarkOfcourse you shoud add a mangle rule for routing-mark like: /ip firewall mangle add action=mark-routing chain=prerouting src-address=192.168.81.0/24 new-routing-mark=clientmarkAlso there should be a nat rule for client(src-addresses 192.168.81.0/24) on it. Ip firewall nat add action=masquerade chain=srcnat src-address=192.168.81.0/24 out-interface=ovpn-out1.
